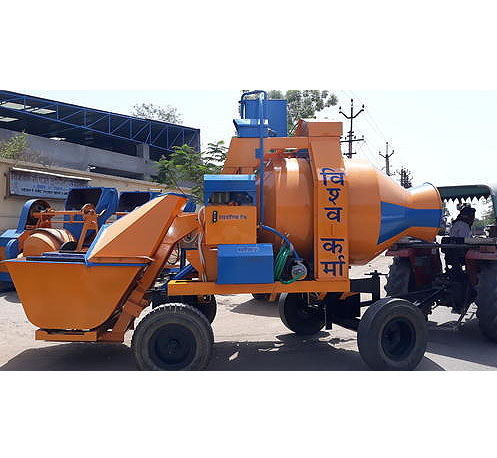

Manufacturer & Supplier of Mini Batching Plant. Our product range also comprises of Automatic Batching Plant Conveyor, Power Floater. |
| |
 |
 |
Owing to our enormous industry knowledge, we have been able to successfully cater the varied needs of our clients by offering them quality examined range of Mini Batching Plant Our provided plant is manufactured using the advanced technology and optimum quality raw material. Moreover, this plant is tested on different stringent parameters to make sure its high performance and quality. Moreover, clients can avail the entire array at market leading prices.
|
| |
| FEATURES |
- Precisely EngineeredHassle Free Pperation
- High Functionality
- Minimum Order Quantity: 1 Piece(s)
|
|
|
tr>
Product Details: |
| |
| |
Output |
10-11 Cu Mtr /Per Hour |
| |
Three Bin |
With Load Cell Attached Three Bin Bucket |
| |
Batch Capacity |
1000 Kg Material Per Batch |
| |
Hydraulic Pump |
22L Gear Pump |
| |
Leveling Jack |
Pin Type (4 Nos) |
| |
Mobile Tyre |
7X19 Pneumatic Wheels (4 Nos) |
| |
Capacity |
1000 kg Material per Batch |
| |
Model Number |
WBM 1050 |
| |
Model/Type |
1050 |
| |
Brand/Make |
Vishwakarma |
| |
Condition |
Refurbished |
| |
Brand |
RM1050 |
| |
Main Motor Power |
10 HP Crompton Motor |
| |
Automatic Grade |
Automatic |
| |
Mixer Volume |
1000 L |
| |
Weighing System |
In built,In built Load,In built Load cell,In built Load cell based,In built Load cell based Wei,In built Load cell based Weigh,In built Load cell based Weighing,In built Load cell based Weighing system,In built Load cell based Weighing system with Digital,In built Load cell based Weighing system with Digital System |
|
|
| |
| SPECIFICATION |
| |
| |
| Vishwakarma Reveres Rotation Mobile Type Batching & Mixing UnitModel No. WBM 900 |
| |
|
|
| |
Technical Features |
Specification |
| |
|
|
| |
Model No. |
-RM 1050 |
| |
Hopper Capacity |
-1050 Ltr |
| |
Batch Capacity |
-1000 Kg Material Mix Batch Capacity. |
| |
Drum Die |
-54” 10 MM Thickness (Sheet) |
| |
Output |
-11-12 Cu.m./hr |
| |
Drum Guide Roller |
-Five Roller |
| |
Mixer Type |
Reversible Type made in M.S Plate with forward rotation |
| |
Power |
- 10 HP Main Crompton Motor And 1Hp Water Pump. |
| |
|
-½ HP Chemical Motor, Vibration Motor |
| |
|
-3 HP Flench hydraulic Motor |
| |
Hydraulic Pump |
-22 LTR Gear Pump. |
| |
Hydraulic Motor |
-3 HP Crompton Make Separate Hydraulic Motor |
| |
Hydraulic Tank Capacity |
-80 Ltr (Hyd. Oil Tank Capacity) |
| |
Water Tank Capacity |
110 Ltr Water Tank with overflow arrangement |
| |
Weighing System |
in built load cell based Weighing system with |
| |
|
Digital Systems |
| |
Control Panel |
Latest Technology power control panel for |
| |
|
Automatic & Manual Systems |
| |
Gear Ring |
|
| |
Operations |
M.S. EN Eight Material Based Gear Ring V Type |
| |
|
Three Roller With Thirteen Teeth Pinion Gear |
| |
Mobile Tyre |
7X19 Pneumatic Wheels (4 Nos) |
| |
Leveling Jack |
Pin Type (4 Nos) |
| |
|
|
|
|
 |
|
| |
| |
 |
|
|
